macOS Catalina (10.15) introduced background processes that resulted in the operating system deleting firmware from connected display devices. The NS7III Display was affected by this; upon initial connection, the display will read "Erasing, Please wait" followed by a prompt to run a firmware update. The good news is that this can be remedied by installing the required driver for macOS Catalina and installing the firmware onto the NS7III Display.


DISCLAIMER - Only attempt the steps in this article if you are experiencing the exact symptoms mentioned above. We are not liable for any complications or failures with your device due to improper firmware installation.


If you do not feel comfortable performing the steps in this article, please contact one of our authorized service centers HERE


Installing the NS7III Display Firmware


  1. Install the NS7III Display Catalina Driver from the link below.

    NS7III | MacOS Catalina Driver

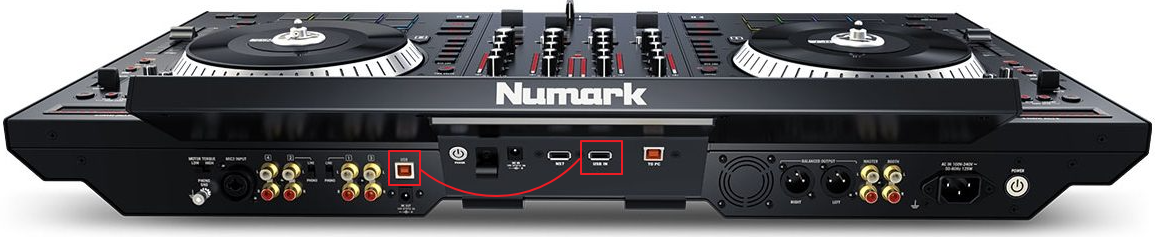

  2. Disconnect the USB cable from the Main NS7III unit from the display (highlighted below)

  3. Download and run the NS7III Firmware Updater app from the link below.

    NS7III | Display Firmware

Upon successfully updating the display firmware, your NS7III display will reboot and start as normal.


    NOTE - If the firmware update fails, simply try the process again. If it continues to fail, you may find success attempting the firmware update on a Windows computer.


Failed to Connect - MIDI (Serato DJ Pro)


If you are receiving a "Failed to Connect - MIDI" error in Serato after successfully updating the firmware on your NS7III Displays, the USB cable referenced above was not disconnected, and resulted in firmware complications within the main NS7III unit. This can be fixed by applying the NS7III firmware via .syx file.


IMPORTANT - ONLY apply this firmware if you previously experienced the display firmware issue mentioned above and immediately received this error. If you received this error without your display prompting for firmware, this process can damage your unit and will require service


macOS

  1. Download SysEx Librarian

    http://www.snoize.com/SysExLibrarian/

  2. Download and install the NS7III macOS Catalina Driver

    NS7III | Numark

  3. Download the firmware file here

  4. Connect NS7III to computer

    IMPORTANT: Be sure that the display is NOT connected to the NS7 for the firmware update to install correctly.

  5. Power on NS7III while holding LOAD A + LOAD B + FWD

  6. Press CUE on right deck when it begins blinking

  7. Wait for FX1 on left deck to light solid red

  8. Load NK43.syx into SysEx Librarian, then click the Play button

    - You should see the FX lights on both decks cycling rapidly during the update

  9. Press CUE on right deck when it begins blinking

    - NS7III should reset itself and be ready for action


Windows


  1. Download Send SX - Bome Software

    Send SX - Bome Software

  2. Download and install the NS7III Windows Driver

    NS7III | Windows Driver

  3. Download the firmware file here

  4. Connect NS7III to computer

    IMPORTANT: Be sure that the display is NOT connected to the NS7 for the firmware update to install correctly.

  5. Power on NS7III while holding LOAD A + LOAD B + FWD

  6. Press CUE on right deck when it begins blinking

  7. Wait for FX1 on left deck to light solid red

  8. Load NK43.syx into Bome Software, then click the Play button

    - You should see the FX lights on both decks cycling rapidly during the update

  9. Press CUE on right deck when it begins blinking

               - NS7III should reset itself and be ready for action


If this doesn't work, then service may still be possible through one of our authorized repair facilities.

Please see our complete list of our authorized North American service centers below. We recommend contacting the one nearest to you to inquire about service options and rates:


If you have additional questions or concerns, please submit a support ticket at www.numark.com/support
